| Nguồn gốc: | Hà Bắc Trung Quốc |
|---|---|
| Hàng hiệu: | Pangolin |
| Giá bán: | Negotiable |
| chi tiết đóng gói: | Theo nhu cầu của khách hàng |
| Thời gian giao hàng: | 5-15 ngày làm việc |
| Điều khoản thanh toán: | T / T |
| Người mẫu: | CSJ-FN-200C | Công suất (m3 / h): | 200 |
|---|---|---|---|
| Bơm bùn Công suất (Kw): | 37 | Áp suất bơm bùn (MPa): | 1,0 ~ 2,0 |
| Công suất máy lắc đá phiến (Kw): | 3 | Máy lắc đá phiến Lực rung (KN): | 60 |
| Kích thước màn hình (mm): | 2100x1200 | Số hình nón: | số 8 |
| Kích thước phân tách (μm): | 10-30 | Tổng công suất (KW): | 40 |
| Kích thước tối đa của hệ thống (mm): | 2400 * 2300 * 2400 | Trọng lượng hệ thống (Kg): | 3500 |
| Điểm nổi bật: | Linear Motion Shale Shaker,Oilfield Linear Motion Shale Shaker,Oilfield Shale Shaker |
||
Introduction
The drilling mud vibrating screen is the first stage of the solids control equipment in the drilling purification system. It can remove the drill cuttings larger than 75μm brought by the drilling well, thereby leaving the liquid with smaller particles in the storage tank below, and then flowing it into the next level of solid control equipment for further processing. At present, it is widely used in mud recovery systems for HDD trenchless, oil and gas drilling, shield tunneling and bored piles.
Advantage of Linear Shale Shaker
Shale shaker feeder can be weir feeder or box feeder.
Hi-speed conveyance of cuttings.
Higher processing capacity.
Able to process heavier solids loads.
Enhances cuttings processing volume.
Single side shale shaker screens tension system to easily change the screens.
G-forces linear motion up to 7.4 G (adjustable depending on the situation).
Product parameters
| Model | CSJ-FN-30C | CSJ-FN-60C | CSJ-FN-120C | CSJ-FN-200C | |
| Capacity (m3/h) | 30 | 60 | 120 | 200 | |
| Slurry pump | Model | DC-EHM-1.5C | DC-EHM-3C | DC-EHM-3C | DC-EHM-4C |
| Power (Kw) | 7.5 | 11 | 22 | 37 | |
| Pressure (MPa) | 1.0~2.0 | ||||
| Shale shaker | Power(Kw) | 1.5 | 2 | 3 | 3 |
| Vibration force(KN) | 30 | 40 | 60 | 60 | |
|
Screen |
UP | 1400X600 | 1700x700 | 1900X1000 | 2100x1200 |
| Down | 1400X600 | 1700x700 | 1900X1000 | 2100x1200 | |
| Cone Model | FN-100 | FN-150 | |||
| Cone Number | 3 | 6 | 12 | 8 | |
| Separation size (μm) | 10-30 | ||||
| Total Power (KW) | 9 | 13 | 25 | 40 | |
| System Max.Size(mm) | 1650X1450X2150 | 2000X1600X2250 | 2170X2000X2400 | 2400*2300*2400 | |
| System weight (Kg) | 1200 | 1900 | 2500 | 3500 | |
Usage and Applicability
Drilling fluid shale shaker is the primary solids control equipment in the drilling fluid solids control system.
The shale shaker sreens the drilling fluid with great amount cuttings,separates the large-size solid particles ,and sent the drilling fluid to the next seperating equipments.
the Shale Shaker has the advantages of simple structure,reliable performance,large disposal capacity,long service life,and simple maintenance.
Structure and Operating Principle
The shale shaker is composed of feeding tank,base,screening box,and vibrating motor etc.six isolation springs sustain the screening box on the base.three same or different mesh screens are installed on the screening box working surface.
Having absorbed the latest achievements in screening machine at home and abroad and integrated the strong points of circle and rectilinear vibration, the shale shaker greatly raises the speed of carrying drill cuttings and boost through–screen quantity of drilling liquid, thus avoiding pasting on the screen. The shale shaker takes double explosion-proof vibration motors as vibrating source, and forms rectilinear movement by the action of reversal rotation vibration motors. It is especially applicable in the working conditions with stratigraphic fluctuation. Its advantages become more apparent as drilling liquid is of much higher viscosity.

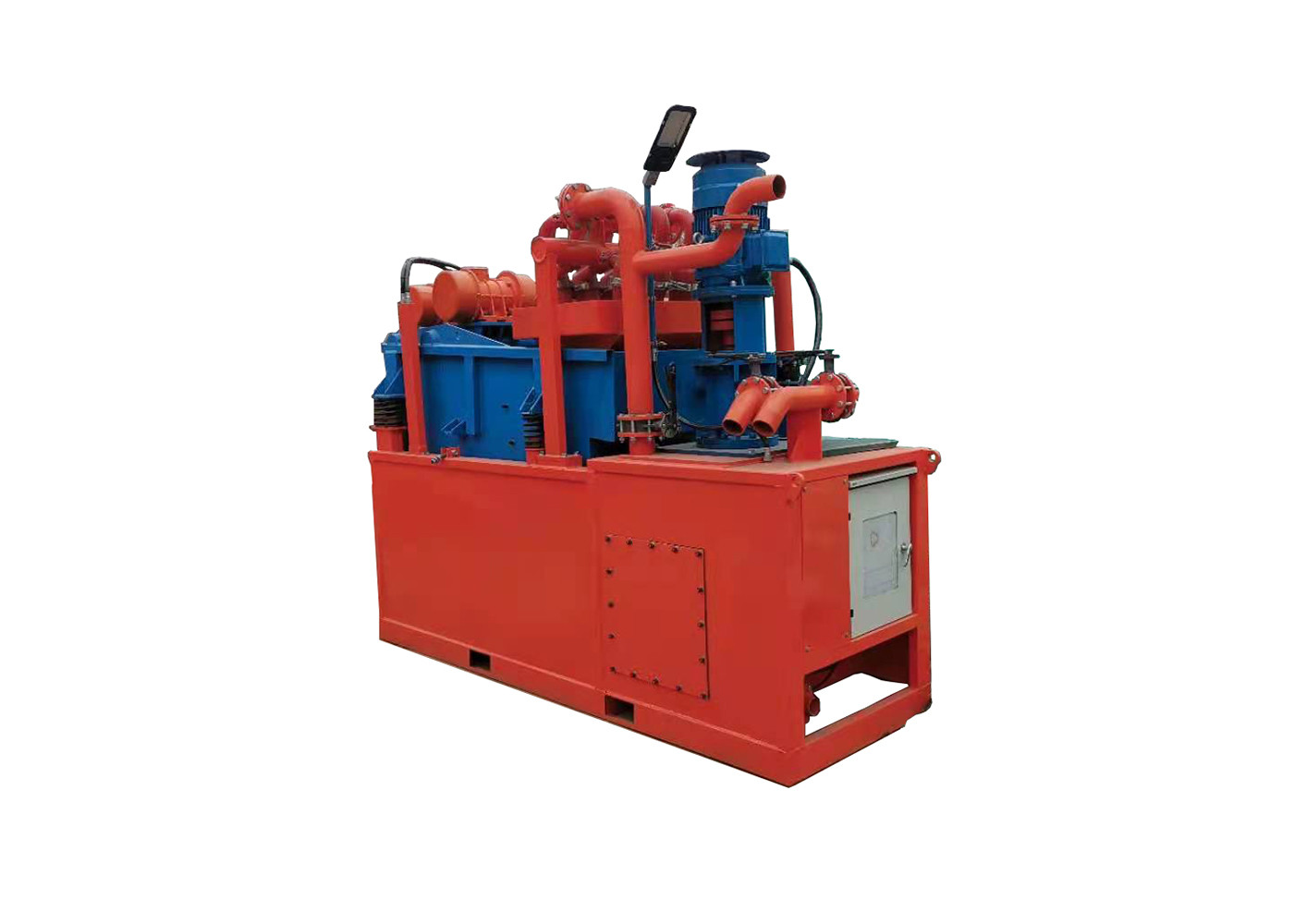

Pic Show
FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.
2. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.
3. How about the regular packing?
A: If there is no special packing requirement, we will take it as regular packing. First put them in small cartons, then put large cartons together to make sure the goods are finished.
4. How to check if the product is what you want?
A: If possible, please attach a reference picture so as not to cause any misunderstanding or any links on our website for better understanding.
5. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.
6. Fast delivery time:
A: Usually it takes 25 days for production.only 3 or 5 days if we have stock of your request size.
7. Competitive price:
A: Our factory can supply you the lowest price due to direct sale to customers without distributor!
